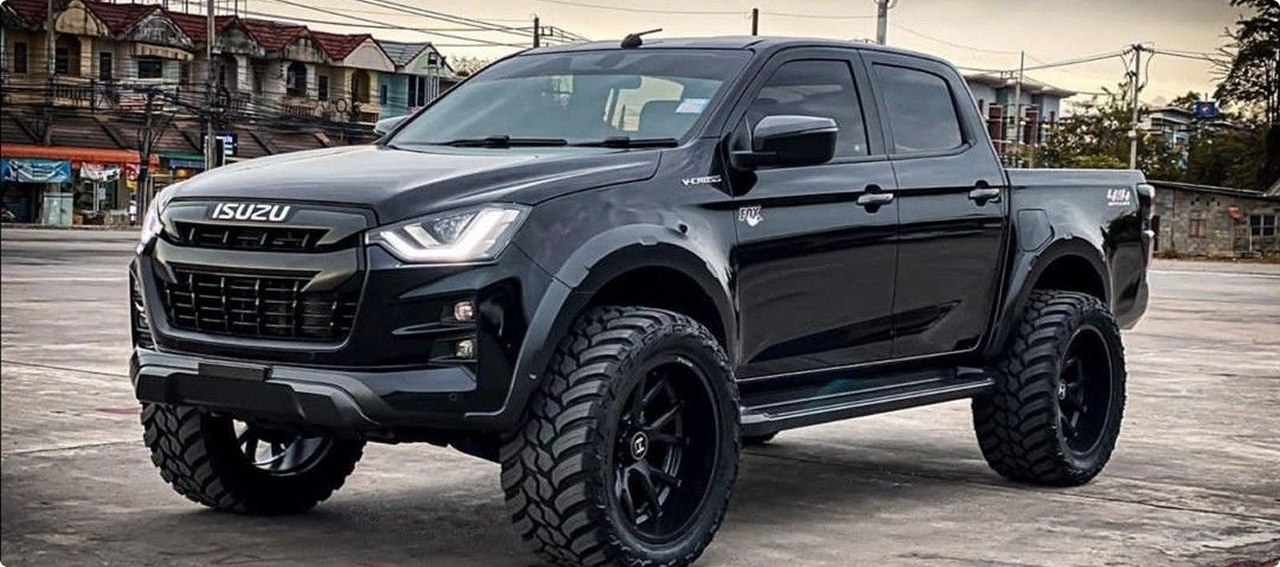

D-MAX
Performance
super strong performance to maximise your potential

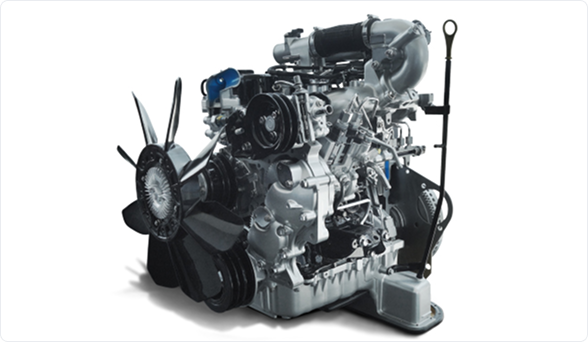

At the heart of ISUZU D-MAX is the legendary ISUZU engine that delivers incredible power and performance efficiency to take on the toughest of terrain
super strong performance to maximise your potential
At the heart of ISUZU D-MAX is the legendary ISUZU engine that delivers incredible power and performance efficiency to take on the toughest of terrain
super strong performance to maximise your potential
At the heart of ISUZU D-MAX is the legendary ISUZU engine that delivers incredible power and performance efficiency to take on the toughest of terrain
super strong performance to maximise your potential
At the heart of ISUZU D-MAX is the legendary ISUZU engine that delivers incredible power and performance efficiency to take on the toughest of terrain
super strong performance to maximise your potential
At the heart of ISUZU D-MAX is the legendary ISUZU engine that delivers incredible power and performance efficiency to take on the toughest of terrain
Comfort
super comfortable like an suv, super strong link a truck
Modern car-like controls for fatigue free long drives. Spacious cabin with ergonomic design help you drive effortlessly for longer hours.

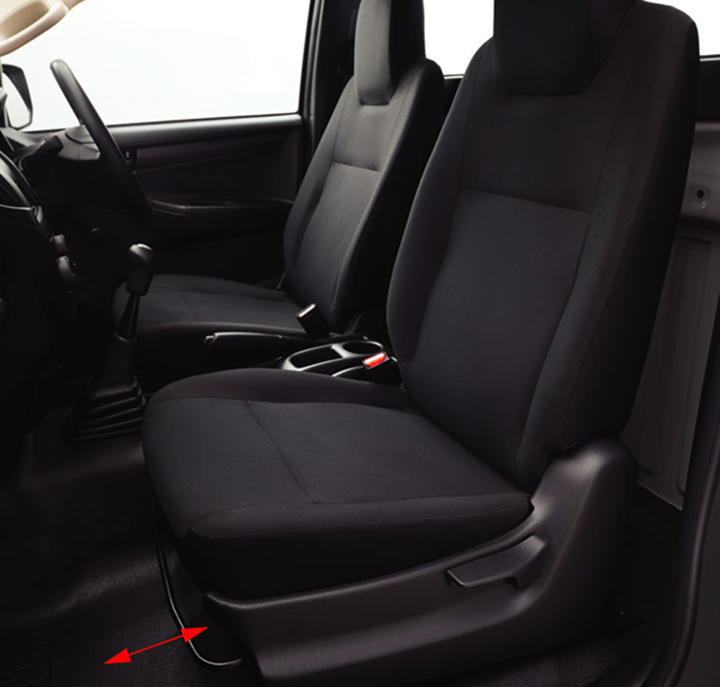

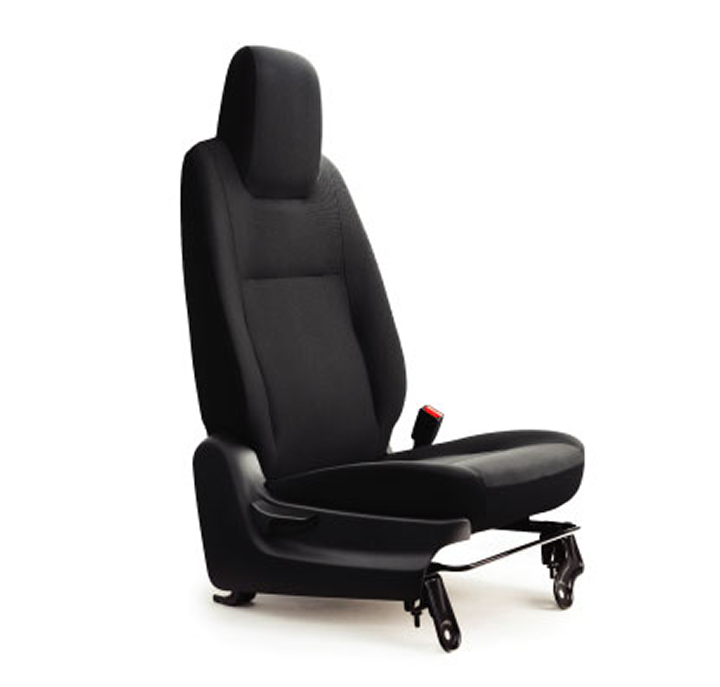

- Fabric seat covers
- Car-like interiors

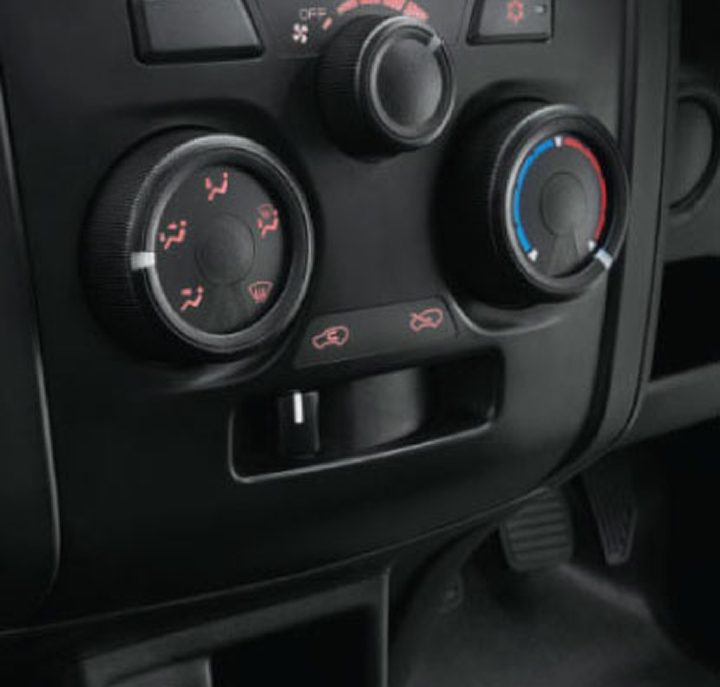

- A/C* with blowers, heater, dust and pollen filter(*optional)
- Quiet and spacious cabin

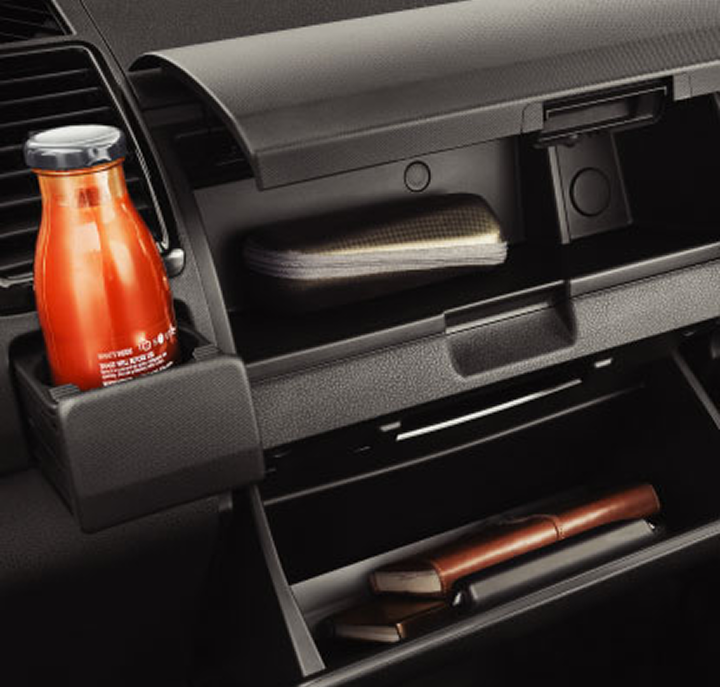

- Multiple storage spaces

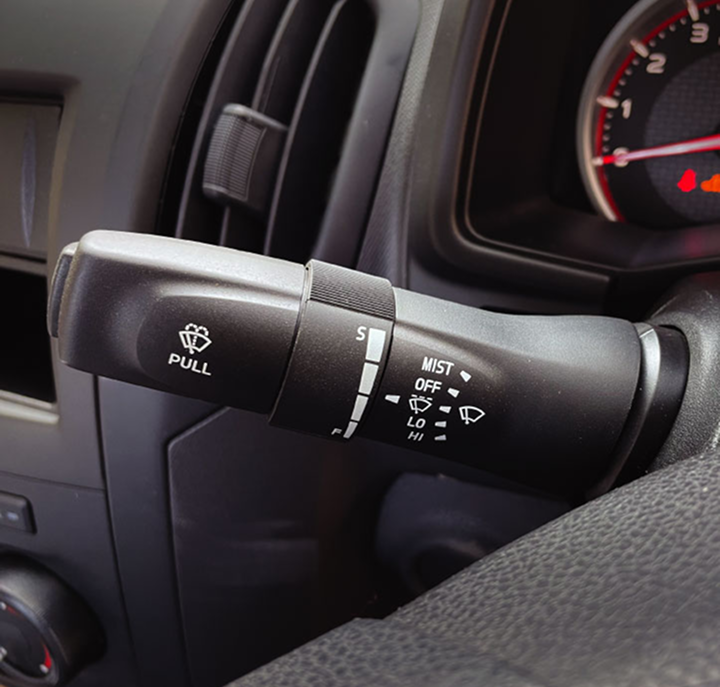

- Ergonomic cabin controls
Safety
The confidence of Super Strong Safety

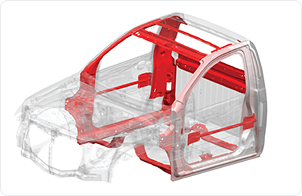

- Collapsible chassis with crumple zones
- Cross-car front beam and side-door intrusion beams
- Collapsible steering column
- Efficient braking system
- Underbody protection kit
- LSPV(Load sensing proportioning valve
Reliability / Durability
High tensile steel body
Protective all-round electro deposition coating
iGrip Platform

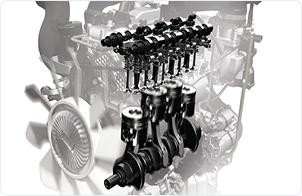

Graphite coated pistons
Specification
Engine
Type
4 Cylinder, Common Rail, VGT Intercooled Diesel
Engine Displacement
2499 cm3
Max Power
58 kW (78 hp) @ 398 rad/s (3800 rpm)
Max Torque
176 Nm @ 157 – 251 rad/s (1500-2400 rpm)
–
Transmission
Drive Type
2WD
No. of speeds, shift type

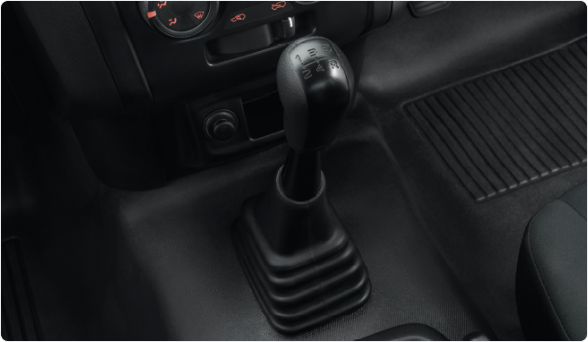

5 Speed, Manual
–
–
–
Suspension
Front
Double Wishbone, Coil Spring
Rear
Semi-Elliptic Leaf Spring
–
–
–
Wheel
Tyre Size
205 R16C
Tyre Type
Radial
Rim Type
6.5J x 16 (40.64 cm)
–
–
Brakes and Steering
Front Brake Type
Ventilated Disc with Twin Pot Caliper
Rear Brake Type
Drum
Steering Type

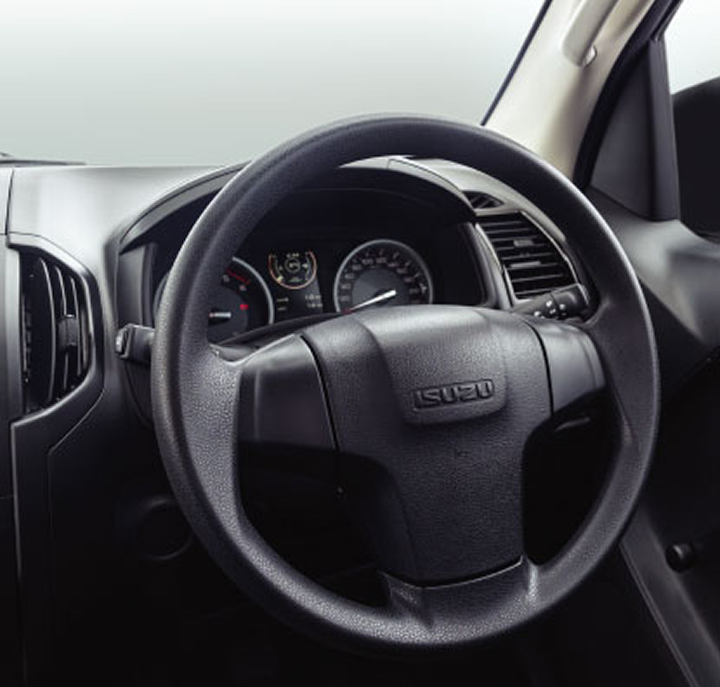

Hydraulic Power Assist with Tilt Adjustment
Brake Type
Hydraulic Brake with large Booster (26.67 cm) and LSPV
–
Dimensions
Overall Vehicle (LxWxH)
5375 mm x 1860 mm x 1800 mm
Wheelbase
3095 mm
Cargo Deck (Inner) (LXWXH)
2440 mm x 1725 mm x 510 mm

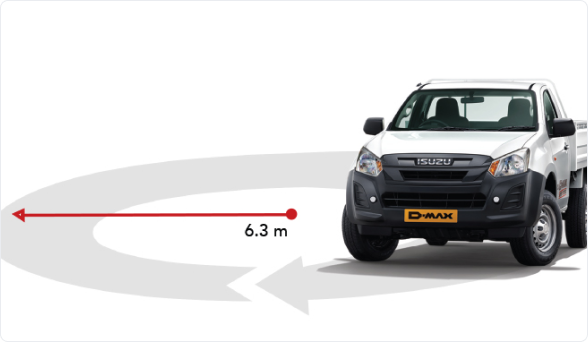

Turning Circle Radius
6.3 m

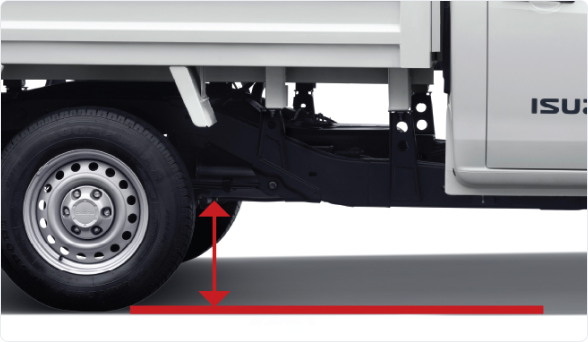

Ground Clearance
220 mm
Capacity
Fuel Tank
55 litres
Seating
D+1
–
–
–
Weight
Payload
1240 kg
GVW
2990 kg
Kerb Weight
1750 kg / 1550 kg
–
–
New Features

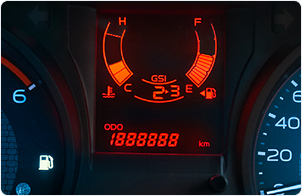

Gear shift indicator

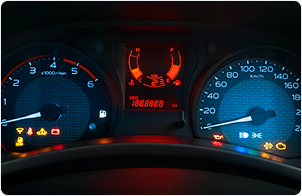

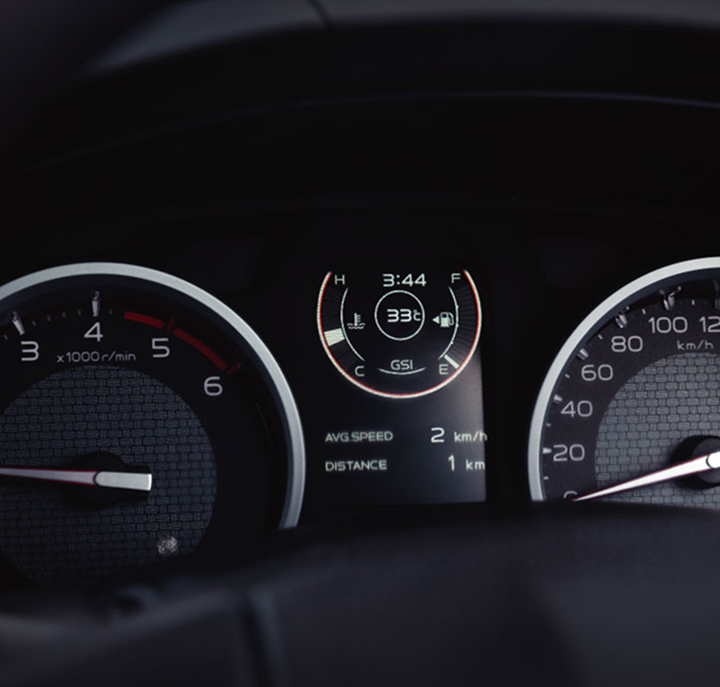

High contrast and stylish instrument cluster

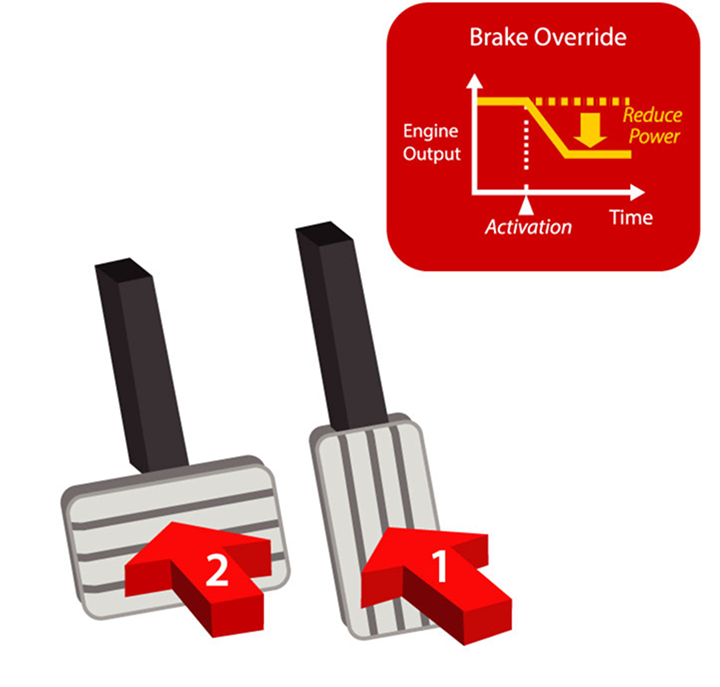

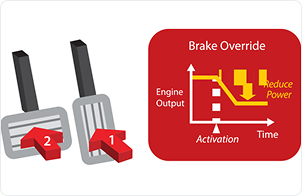

Brake override system

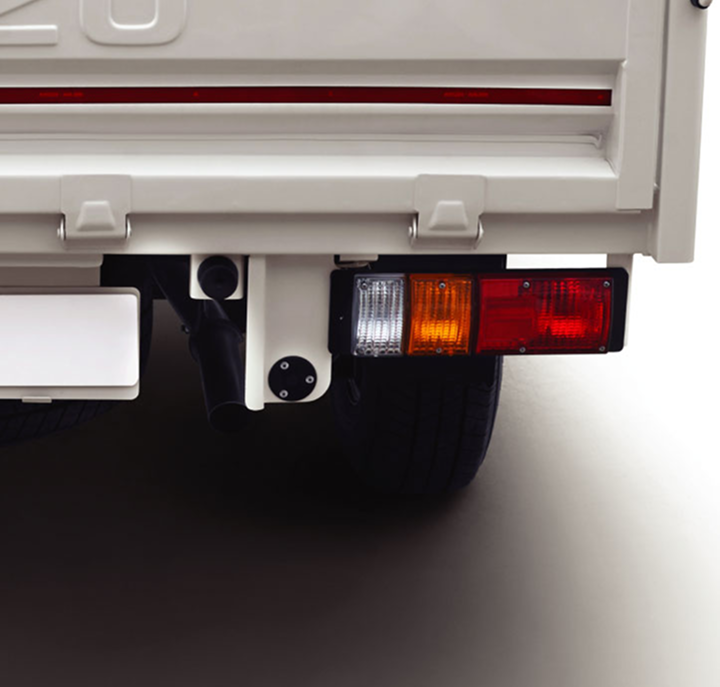

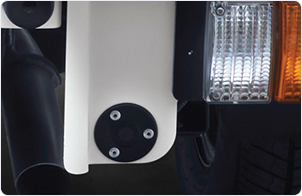

Rear parking sensor
